Product Details

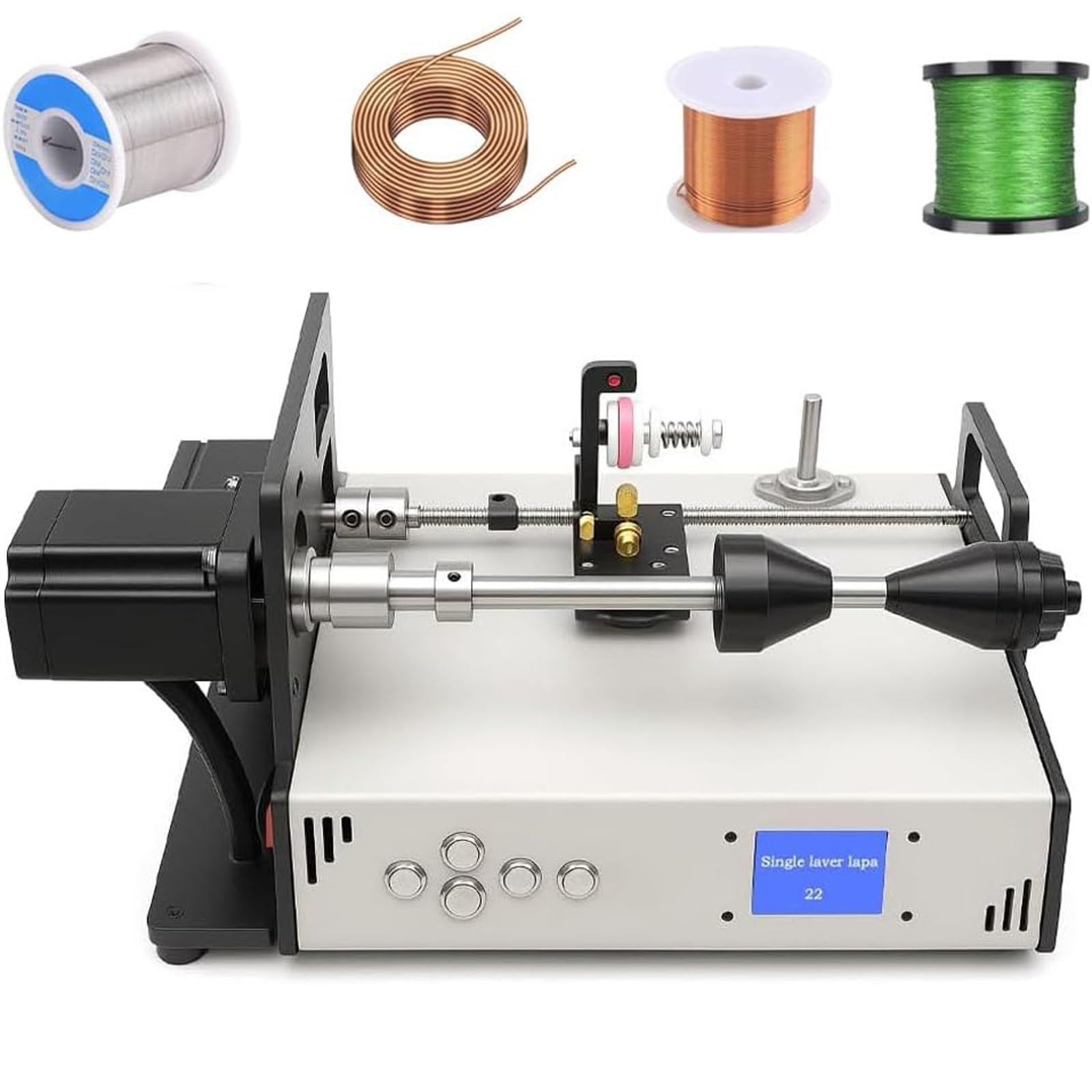

✓Wide Compatibility & Flexibility: Compatible with enameled wire, nylon wire, resistance wire, optical fiber, 3D printing consumables, fishing line, and silk thread.

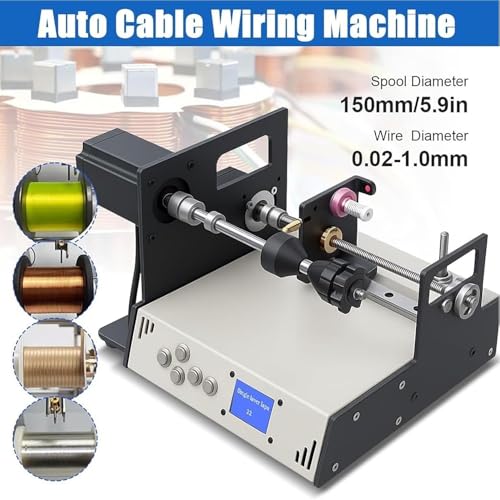

✓Coil Winding Machine: Capable of winding coils, tapes, threads, and fishing lines with a 4 mm thick steel base, ready to use upon hand. The slide table precision is 0.01 mm, and the winding diameter is 0.02 mm-1.0 mm
✓Precise Wiring: The machine with automatic wire arrangement function, winding pitch accuracy up to ±0.01 mm, improves the consistency of finished products. Avoid problems such as coil loosening and rubbing

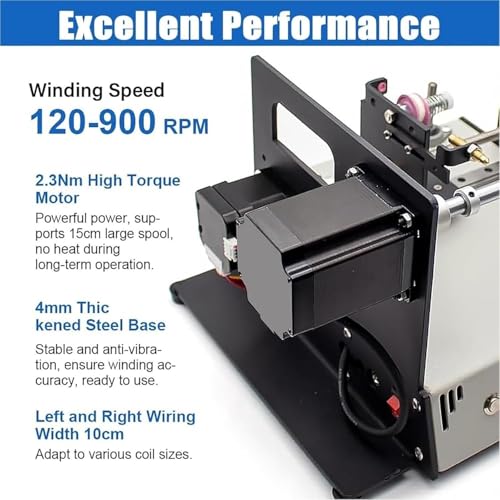

✓120-900 RPM Adjustable Speed: Automatic Cable Tie Winding Machine By inputting parameters, the program intelligently adjusts wire width, speed, total number of turns, number of turns per layer, length, direction, and more (coarse and fine adjustments are possible)
✓Automatic Wiring: User interface is simple and intuitive, with adjustable winding direction, pauseable at any time during winding, and automatic saving of winding parameters. Winding is neat and precise, and the number of turns can be set as needed, meeting the needs of large-scale production
