Product Details
✓FEATURES : The B&C Speakers 12HPL76 is a lightweight yet powerful 12-inch mid-bass woofer built for professional audio setups. With a 700 W program power rating, a 3-inch aluminum voice coil, and a neodymium magnet, it delivers high sensitivity (99 dB) and a broad frequency range from 50 to 3500 Hz. Its ventilated coil gap helps reduce power compression, ensuring consistent performance even under heavy use.
✓SPECIFICATIONS : The B&C Speakers 12HPL76 is a powerful 12-inch mid-bass woofer with an 8-ohm impedance, capable of handling up to 700 watts of continuous power. It offers a wide frequency range from 50 Hz to 3500 Hz and delivers high sensitivity at 99 dB. Built with a 3-inch aluminum voice coil on a glass fibre former and a 10 mm magnetic gap, it ensures efficient and dynamic audio performance supported by a strong 1.15 T flux density.
✓PARAMETERS : The B&C Speakers 12HPL76 is a precision-engineered 12-inch woofer optimized for low-frequency clarity and control. It features a 49 Hz resonance, 522 cm² piston area, and 91 dm³ compliance, delivering responsive output with a 43 g moving mass. Its low Q values, 6-ohm resistance, and 1.5 mH inductance support dynamic performance, while a strong motor (Bl 17.3 Tm) and controlled excursion ensure clean movement. With an EBP of 188 Hz, it’s ideal for vented enclosure designs.
✓DESIGN : The B&C Speakers 12HPL76 features a double roll surround and an exponential cone shape, supported by a single spider for controlled movement. Its motor structure includes a neodymium inside slug magnet and a straight pole design, contributing to a lightweight yet powerful assembly. The woofer cone has no additional treatment, maintaining natural response characteristics. For optimal performance, it is recommended to use a 40 dm³ (1.41 ft³) enclosure tuned to 70 Hz.

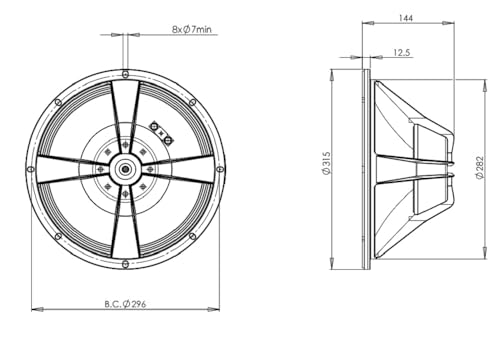

✓MOUNTING AND SHIPPING INFO : B&C Speakers 12HPL76 has a compact and efficient design with an overall diameter of 12.4 inches and a baffle cutout diameter of 11.1 inches. It features a flange and gasket thickness of 0.5 inches and a bolt circle diameter of 11.6 inches, with a depth of 5.7 inches. The speaker ships in a box measuring 14.17 × 14.17 × 7.87 inches, with a net weight of 6.94 pounds and a shipping weight of 8.93 pounds, making it easy to handle and install in various audio setups.
