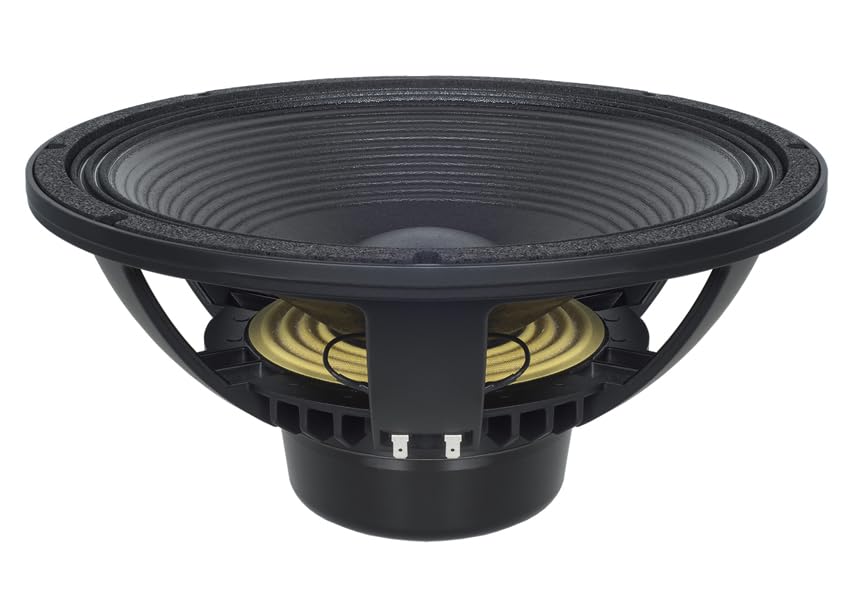

✓The B&C Speakers 15NBX100 is a powerful 15-inch cone driver with a 4-inches copper voice coil, capable of handling 2000 watts of continuous program power. It offers a wide frequency range of 35–1500 Hz and 97 dB sensitivity. Designed for precision and durability, it features an FEA-optimized neodymium magnet, aluminum demodulating ring for low distortion, double silicone spider for stability, and a ventilated coil gap to minimize power compression.
✓This 15-inch speaker driver offers powerful low-frequency performance with 2000 watts of continuous power handling, 97 dB sensitivity, and a 35–1500 Hz frequency range. It features an 8-ohm impedance, a 4-inch copper voice coil on a glass fibre former, and a 1.1 Tesla flux density for precise magnetic control and sound accuracy.
✓This speaker driver features a triple roll surround and exponential cone shape for enhanced excursion and sound dispersion. It utilizes a neodymium inside slug magnet and a T-pole design for efficient magnetic control. The double silicone spider ensures stable cone movement, while the TWP-treated woofer cone is waterproof on both sides. For optimal performance, it is recommended to use a 114.0 dm³ (4.0 ft³) enclosure tuned to 35 Hz.
✓This speaker driver is built for deep bass output, featuring a 36 Hz resonance frequency and a large 855 cm² piston area. It operates with a DC resistance of 5.1 ohms and a Qts of 0.29, ideal for vented enclosures. With ±10 mm excursion, a 151 g moving mass, and a motor strength of 25.0 Txm, it ensures powerful and precise performance. Additional specs include a 125.0 dm³ compliance volume, 2.0% efficiency, 2.0 mH inductance, and a 116 Hz EBP.

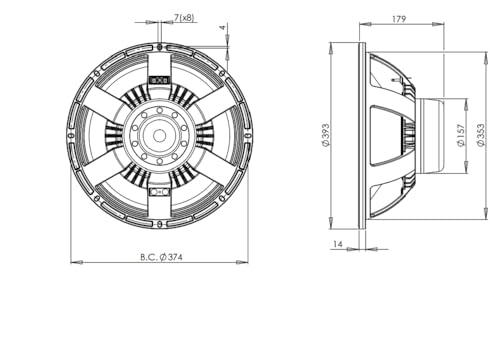

✓This speaker driver has a compact mounting profile with a 5.5-inch overall diameter, a 16.7-inch bolt circle, and a 13.9-inch baffle cutout. It measures 7.05 inches in depth and features a 0.55-inch flange and gasket thickness. The unit occupies 0.21 ft³ of air volume, weighs 19.8 lb, and ships in a 16.73×16.73×8.82 inch box with a total shipping weight of 22.71 lb.
