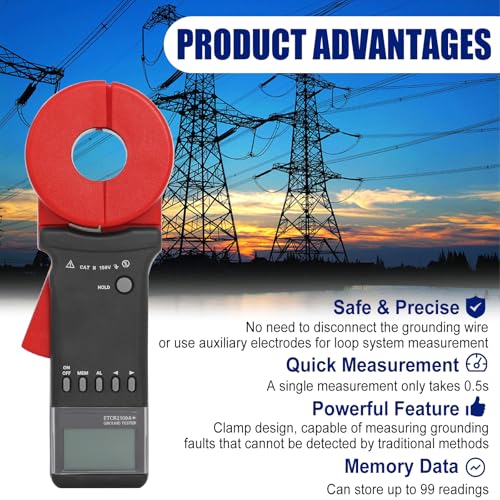

✓【PREMIUM QUALITY】This practical earth ground resistance tester offers more reliable quality and represents a major breakthrough in grounding resistance testing technology. Non-contact clamp measurement is safe and fast. When measuring closed-loop grounding systems, there is no need to disconnect grounding down conductors or use auxiliary electrodes, saving setup time and effort. The clamp-type meter can detect grounding faults that traditional methods cannot measure and can be used in situations where traditional testing methods are difficult to apply.
✓【WIDELY APPLIED】This ETCR clamp earth resistance tester is widely used for electrical grounding and loop testing, including ground resistance and loop resistance measurements in electric power, telecommunications, meteorology, oil fields, construction, and industrial electrical equipment. When measuring closed-loop grounding systems, there is no need to disconnect ground wires or use auxiliary electrodes, making testing safer and faster.

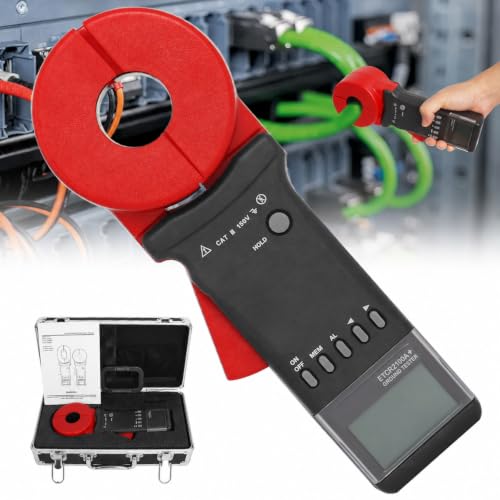

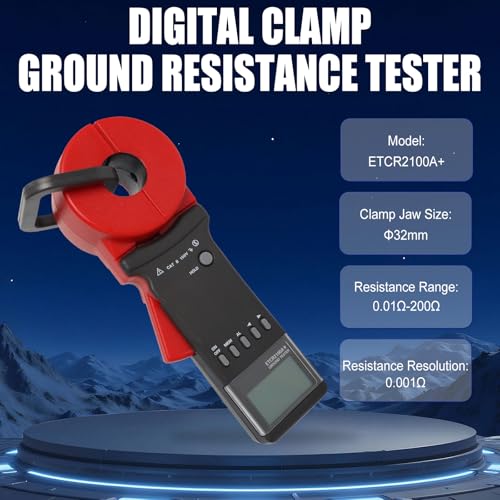

✓【SAFETY USE】Model: ETCR2100A+; Jaw size: Φ32mm; Body dimensions: 260 × 90 × 66mm for convenient handheld checks; Resistance range: 0.01–200Ω; Resolution: down to 0.001Ω, varying by resistance range; Power: 6V DC from four AA/LR6 alkaline batteries; Single measurement time: 0.5 seconds; Display: 4-digit LCD with a 47 × 28.5mm screen for clear readings; Data storage: 99 sets for later review; Audible and visual alarm: repeated beeps and flashing alerts when resistance exceeds the set threshold; Press the AL button to turn alarms on or off; Adjustable resistance alarm threshold: 1–199Ω.
✓【ATTENTION】Before powering on, squeeze the trigger once or twice to ensure that the jaws close fully. During startup, do not press the trigger, open the jaws, or clamp any wires. Keep the grounding tester still in its natural position, with the jaws closed and empty. Do not turn the tester over or apply external force to the jaws. Once startup is complete and OLΩ appears, press the trigger to open the clamp and place it around a grounding conductor.

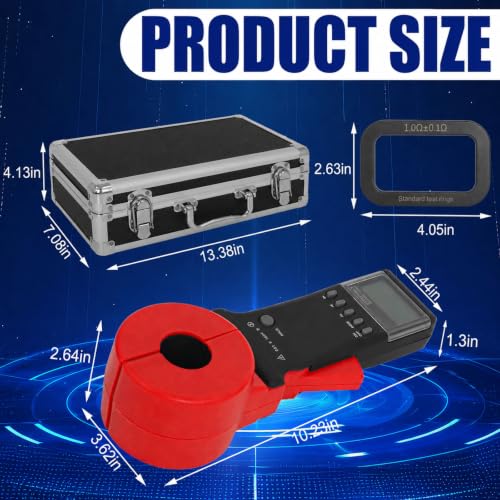

✓【PACKAGE INCLUDES】This ground resistance tester kit includes 1 earth resistance tester, 1 test ring for function checks, 1 carrying case for convenient transport and storage, and 1 printed instruction manual. Batteries are not included.
