Product Details

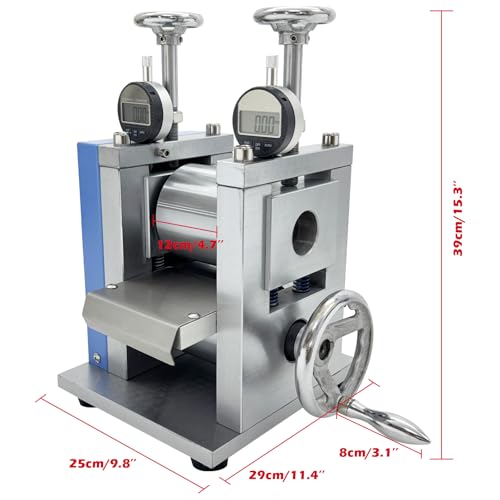

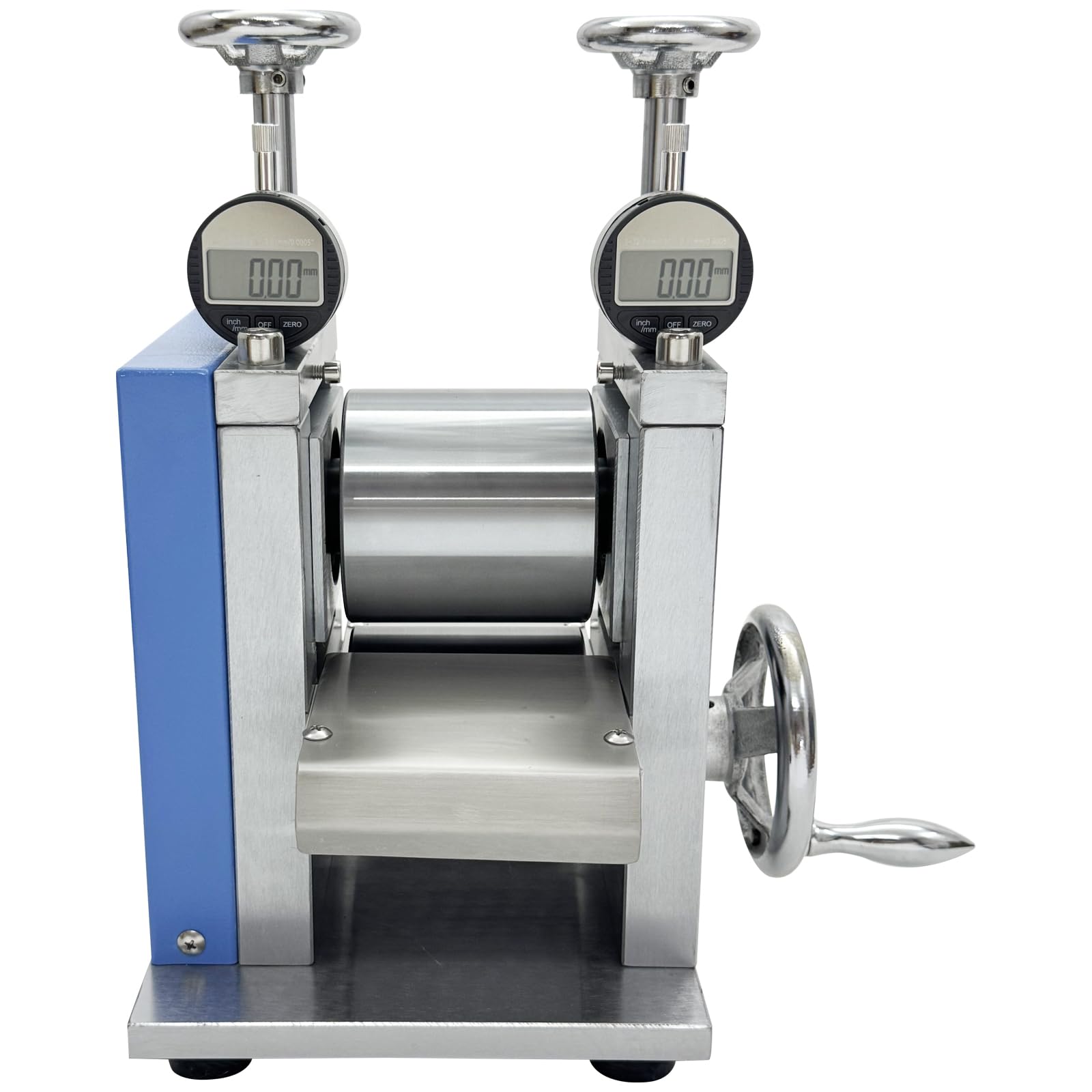

✓Main Techincal Data: Pressed plate thickness: 0~3mm (0~0.12 inch), Pressed plate width: 0~100mm(0~3.94 inches), Roller surface hardness: HRC60 or above, Roller cylindricity: ≤±2um, Roller diameter: 2~Φ97*100mm (0.07~Φ3.82*3.94 inches), Feed speed: 0-40mm/s (depending on the hand cranking speed)
✓High-hardness rollers, surface electroplating treatment, resistant to rust, and the hardness can be HRC60 or above.The press rollers are made of high-quality alloy materials, ensuring that the materials are effectively pressed while the longer service life is achieved.

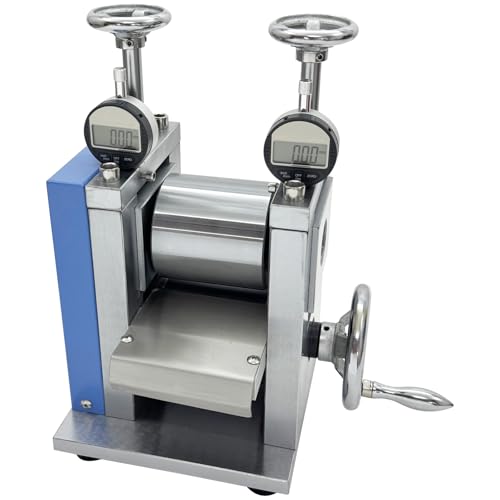

✓Digital dialgauges, clear display, precise detection and real-time monitoring. The digital dialgauges have high detection precision and sensitivity and can clearly display the detection values, facilitating real-time monitoring of the pressing state.

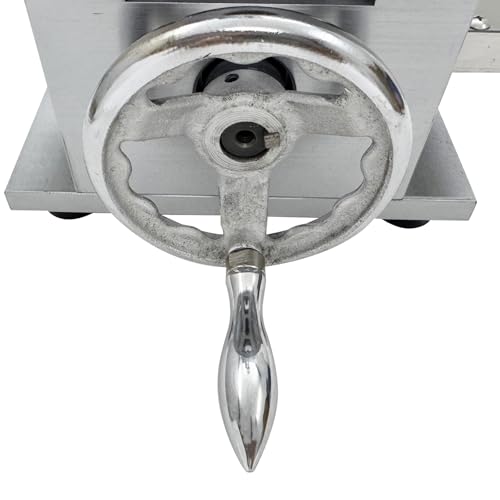

✓The two handwheels on the top can be rotated to adjust the gap between the upper and lower rollers, keeping the gap symmetrical and the upper roller balanced and further ensuring the pressing uniformity.
✓Gear drive, adjustable rolling thickness, convenient to use.
