Product Details

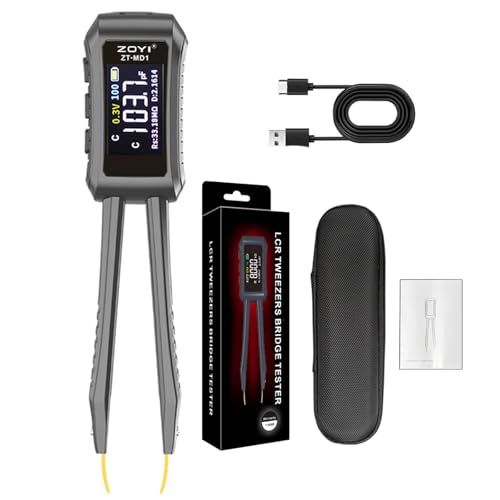

✓【Digital LCR Tweezer Tester】:Intelligently auto-identifies resistors, capacitors and inductors to deliver precise component parameter readings. It covers an extensive measuring range: max resistance up to 10MΩ, max capacitance up to 20mF, max inductance up to 60H. It also measures loss and impedance parameters including D, Q, Rs, Z and X.
✓【Versatile Powerful Functions】:Packed with practical features: Data hold, adjustable backlight brightness, auto power-off and firmware upgrade. It adopts a 10kHz test frequency with a maximum 0.6V measuring excitation voltage.
✓【SMD & LCR Component Tester】:Boasts a slim, compact and portable body. Equipped with flexible tweezer measuring arms and detachable gold-plated probe tips, it ensures agile and stable operation, perfectly suited for parameter testing of all types of SMD chips and conventional LCR components.

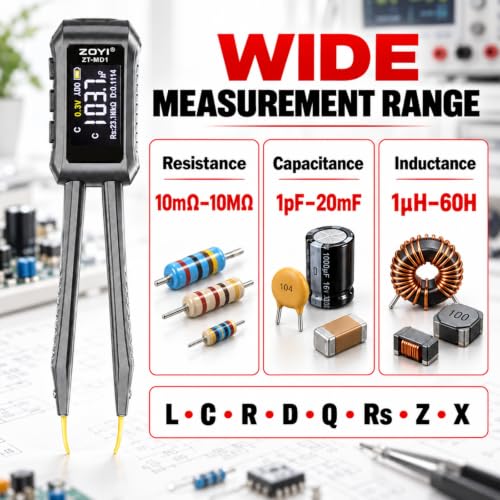

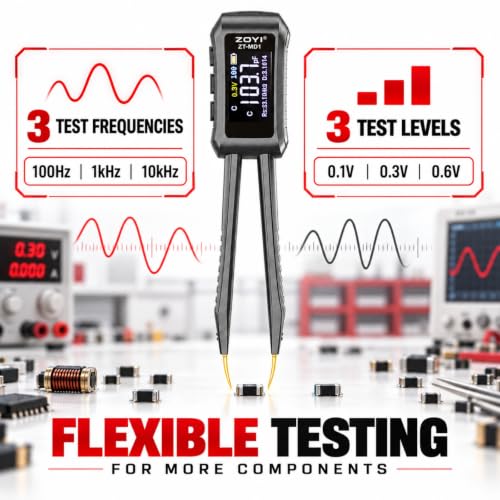

✓【Measurement Range】:3 test frequencies: 100 Hz, 1 kHz, 10 kHz;3 test voltages: 0.1Vrms, 0.3Vrms, 0.6Vrms;Resistance: 10 mΩ ~ 10 MΩ;Capacitance: 1 pF ~ 20 mF;Inductance: 1 μH ~ 60 H
✓【Safety Operation Notice】:DO NOT measure live circuits directly. Cut off all power supply before in-circuit testing, and fully discharge residual electricity from all capacitors on the circuit board
✓【Data Hold/Storage&Export】:Built-in data hold for freezing readings. This LCR tester automatically saves test records. You can connect the tester to a computer and export all measurement data to your PC via Excel format.
