Product Details

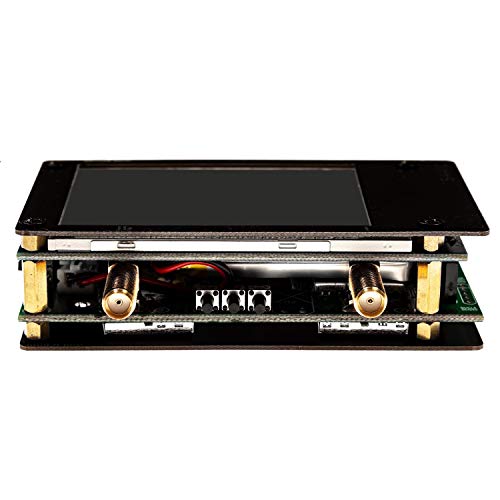

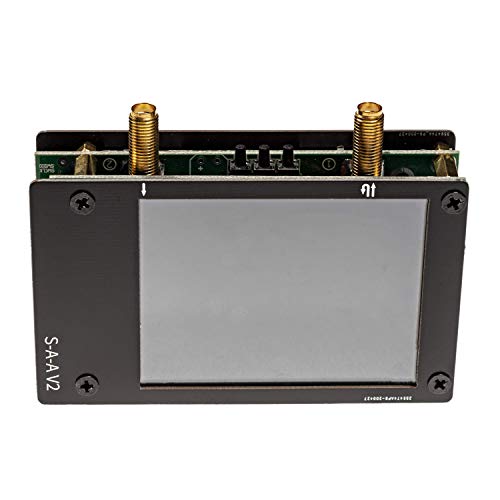

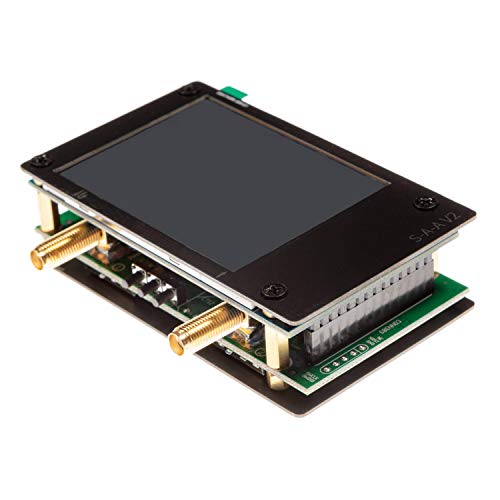

✓A small, portable, battery powered vector network analyzer with a wide frequency range from 50kHz to 3GHz

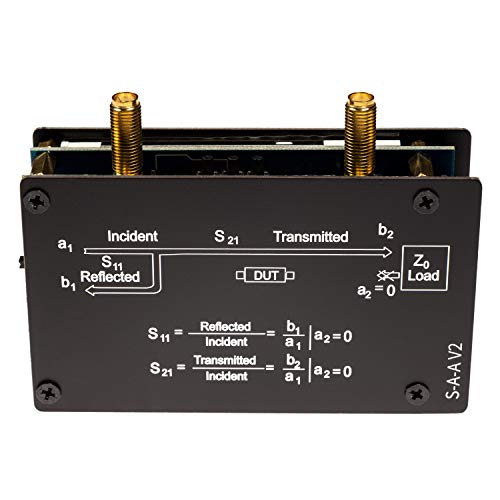

✓Able to measure S11 reflection coefficient and S21 transmission coefficient
✓A beautiful 3" inch, 320*240 display with 1950mAh rechargeable lithium-ion battery
✓System dynamic range when calibrated is 70dB from 50kHz to 1.5GHz and 60dB from 1.5GHz to 3GHz
✓Minimum return loss is 20dB at 1.5GHz and 13dB at 3GHz
✓1024 sweep points with USB mode along with NanoVNA-QT software and 201 points when data is displayed on the screen
✓A SOLT calibration kit is included in the package and 2 male to male SMA RF coaxial cables
✓MicroUSB interface for charging and personal computer connection is included in the package
