Product Details

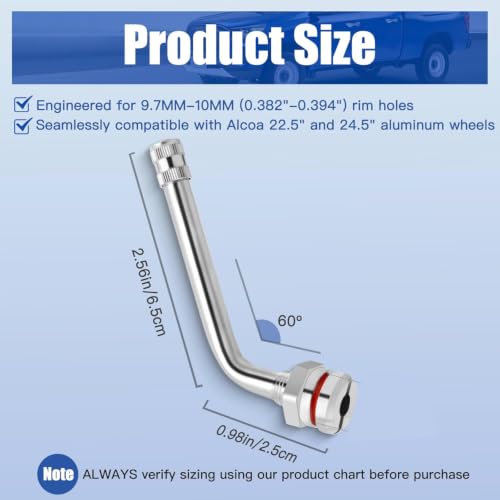

✓【FITMENT CHECK - ALUMINUM WHEELS ONLY】 Fits 22.5" & 24.5" ALCOA and Accuride ALUMINUM wheels (Outer Duals) with 0.382" (9.7mm) valve holes and 60° bend requirement. Must-have for commercial fleets, semi-trucks, and dually trucks. Please measure your rim hole diameter and check wheel material before ordering.
✓【VEHICLE COMPATIBILITY】 Compatible with heavy-duty commercial semi-trucks (Freightliner, Peterbilt, Kenworth, Volvo, Mack, International), Class A RVs, and Dually Trucks (Ford F-450/F-550, RAM 3500/4500/5500, Chevy 3500HD/4500HD). ONLY fits models with ALUMINUM WHEELS. Not for standard 1/2-ton pickups or passenger cars.
✓【IMPORTANT - DOES NOT FIT】 Does NOT fit STEEL WHEELS (steel rims require larger 0.625" holes). Does NOT fit passenger cars, SUVs, or 1/2-ton trucks (e.g., F-150, RAM 1500). Does NOT fit older 0.625" hole aluminum rims or wheels requiring a 75° bend angle.

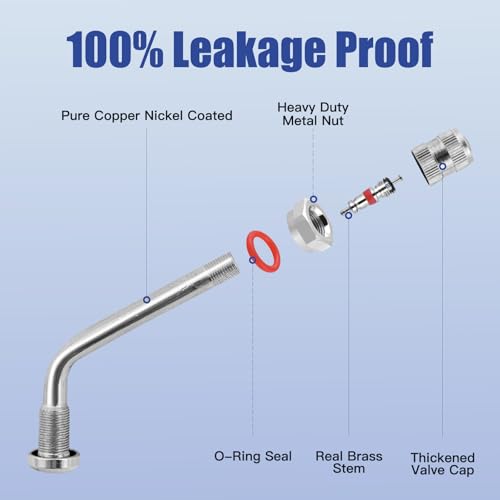

✓【HEAVY-DUTY BRASS & LEAK-PROOF SEAL】 Made of solid nickel-plated brass for maximum rust and weather resistance. Equipped with high-temp Viton O-rings for a 100% airtight seal under heavy loads. Rated up to 150 PSI max pressure. Direct replacement for TR545D, TV-545D, VS-545D, 17-545D, 1-504D, VH736.

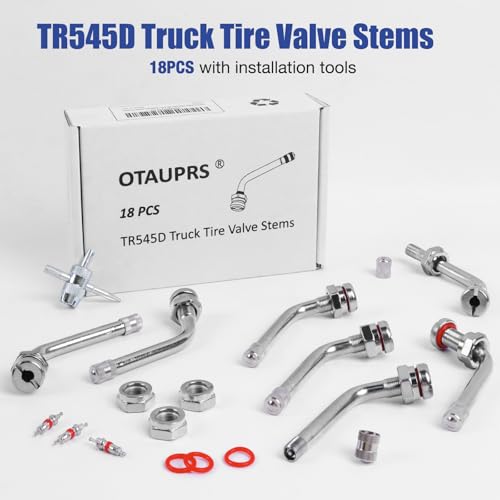

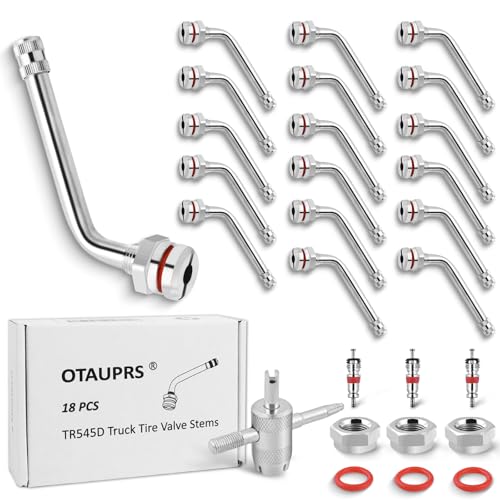

✓【BONUS MAINTENANCE KIT & INSTALLATION】 Comes with a maintenance kit: 1x 4-Way Valve Core Tool, 3x Spare Cores, 3x Hex Nuts, and 3x Viton O-Rings. INSTALLATION TIP: Clean rim hole surface thoroughly before mounting. Torque nut to 80-125 in-lbs (7-10 ft-lbs / 9-14 Nm). Do not over-torque to prevent seal or thread damage.
