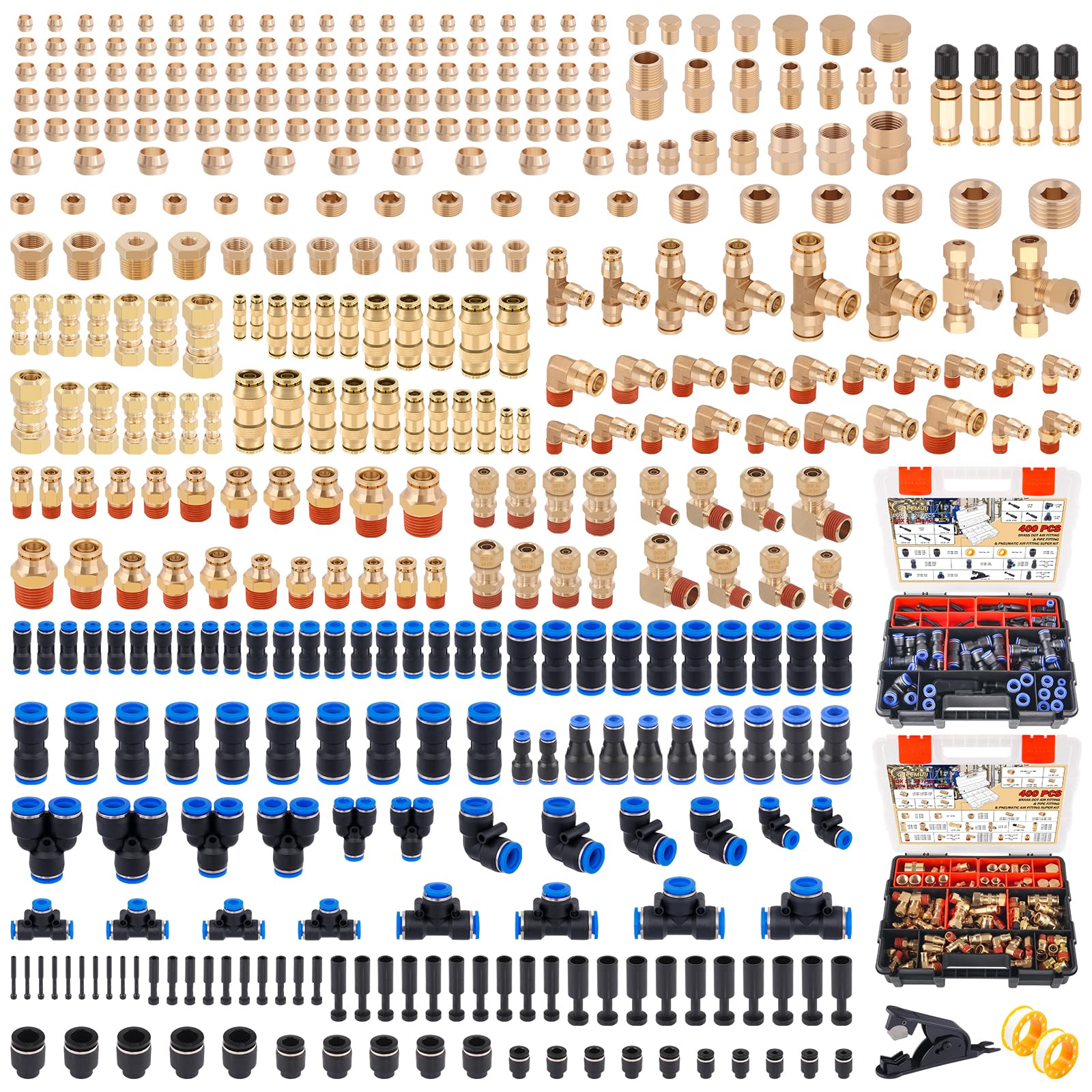

✓400 PCS PACKAGE: The CheeMuii 400pcs DOT air line fittings assortment include: 36pcs DOT brass straight unions, 8pcs DOT brass tee unions, 30pcs DOT brass straight push & NPT air fittings, 28pcs DOT brass 90°elbows push & NPT air fittings, 51pcs 5 types of brass pipe fittings, 4pcs DOT brass 1/4" inflation Schrader valve, 110pcs DOT sleeve ferrule, 130pcs 7 types of pneumatic unions, 1pc tube cutter, 2pcs Teflon tape. Air brake line fittings types: 1/8", 1/4", 3/8", 1/2"
✓PREMIUM BRASS DOT AIR FITTINGS: CheeMuii DOT quick connect air fittings & DOT compression air fittings & pipe fittings are all made of high-quality CA360 brass, meet D.O.T. FMVSS 571.106 approved, SAE J1131 air brake system requirements, with corrosion resistance, high-temperature ductility, low permeability and long service life
✓BRASS FITTING WORKING INTENSITY: The CheeMuii brass DOT air fittings and brass pipe fittings can be operated in pressures from vacuum to 800 PSI and in temperatures from -40°F to +248°F (-40°C to +120°C). Note: see the tubing manufacturer's recommendations for pressure and temperature mutations
✓PNEUMATIC AIR FITTING: The pneumatic plastic air hose fittings are made of nickel-plated brass and high-quality polybutylene terephthalate (PBT).Acid-resistance, corrosion resistance, high tensile strength, aging resistance, and fire prevention. They have stainless steel lock claws and good steel washers for a thousand bounces and can withstand strong pressure without tripping out
✓PLASTIC FITTING WORKING INTENSITY: The CheeMuii pneumatic air line fittings working pressure from air vacuum to 145 psi, 0- 0.9MPa.Temperature Range: 0°F to +60°F(32°C to +140°C),Proof pressure: 1.32Mpa. Note: see the tubing manufacturer’s recommendations for pressure and temperature limitations
✓AIR SUSPENSION VALVE: CheeMuii 1/4" DOT inflation Schrader valves are made of CA360 pure brass, which is durable and corrosion-resistant. Thread length: 3/4". Provide a manual inflation point to air spring suspension bags. Each expansion valve is equipped with a protective cap to prevent dirt and mud
✓QUICK CONNECT FITTINGS: Our DOT push-to-connect air fittings and compression air fittings are extremely easy to install, can be sealed by pushing the tube firmly into the fitting and are also simple to remove from the tube
