Product Details

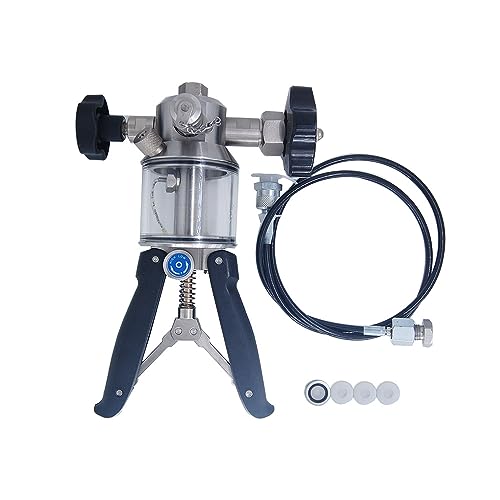

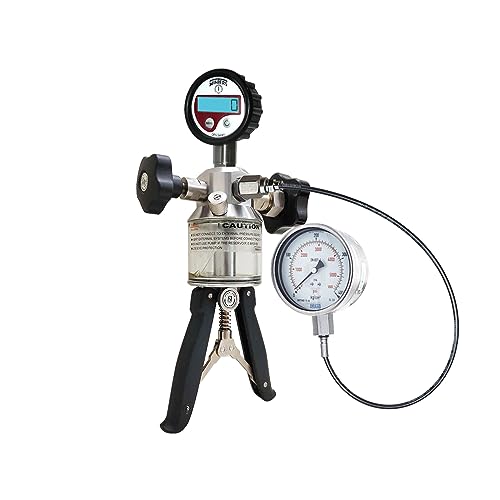

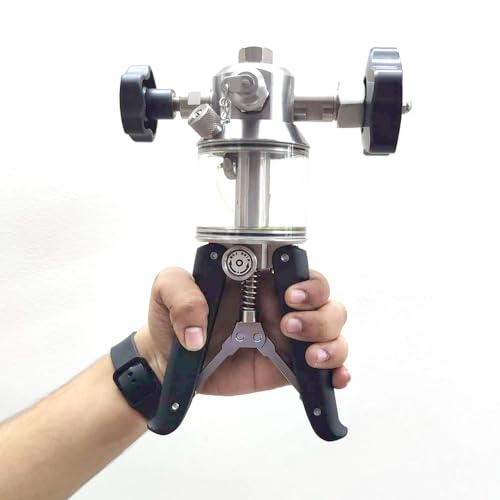

✓Model: DPI-2300 | Features: Dual source of hydraulic pressure and vacuum | Built-in fine adjust vernier | Needle valve provides controlled pressure release | Selector valve for vacuum or pressure generation | Comfortable and ergonomically designed molded handles | Adjustable stroke.
✓Range: 0 to 600 Kg/Cm² | Material of Construction: SS 304 | Weight: 2.5 Kg Approx.
✓Operation: Pressure is generated by the hand operation of the caliper handle which move a piston back and forth resulting in the suction and delivery fluid used for pressure generation. Suitable for use with water/oil.
✓Supply Scope: 1 Unit of Calibrator, 3 Nos Reducers (1/4", 1/2", 3/4").
✓Applications: Calibration Labs, Field Calibration, Pressure Gauge Calibration, Pressure Transmitter Calibration.
