Product Details

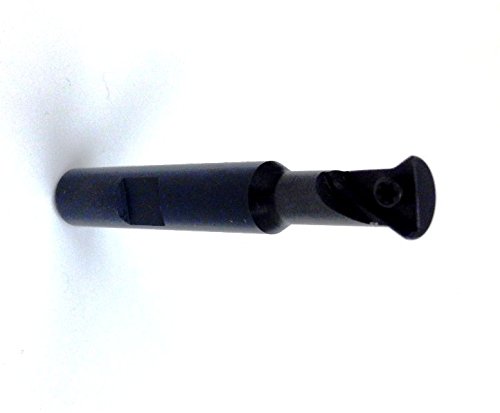

✓60° DOVETAIL CUTTER – HHIP 1/2 x 3/8" Shank 1-Flute Indexable Dovetail Cutter is designed for precision milling of 60° dovetail slots and grooves. The 60° cutting angle helps produce accurate, tight-fitting joints and undercuts in machining applications.
✓PRECISION RIGHT-HAND CUTTING – Features a right-hand cutting direction, 60° angle, and 15° clearance angle for controlled cutting performance and accurate results. Ideal for creating dovetail features where precise dimensions and clean cuts are required.
✓1/2" CUTTING DIAMETER – Features a 1/2" cutting diameter, 0.32" maximum cutting depth, and 3/8" shank for compatibility with suitable milling machines and tool holders. Designed for efficient machining of dovetail slots, grooves, and profiles.
✓INDEXABLE INSERT DESIGN – Uses one TDEX 21.5 indexable insert, HHIP #6062-0215, allowing the worn insert to be replaced without replacing the entire cutter. Insert is NOT included. Replaceable inserts help reduce tooling costs and minimize machining downtime.

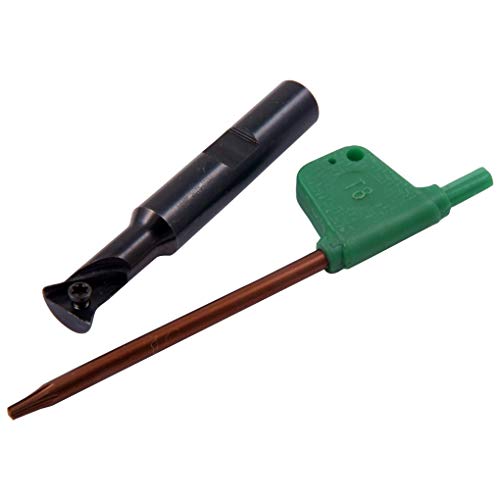

✓INSERT HARDWARE INCLUDED – Includes the insert screw and wrench for convenient installation of the TDEX 21.5 insert. Replacement insert screw is M2.5 x 5, HHIP #2100-0067. Designed for quick insert changes to help keep machining operations running efficiently. See diagram picture for more dimension information.
