Product Details

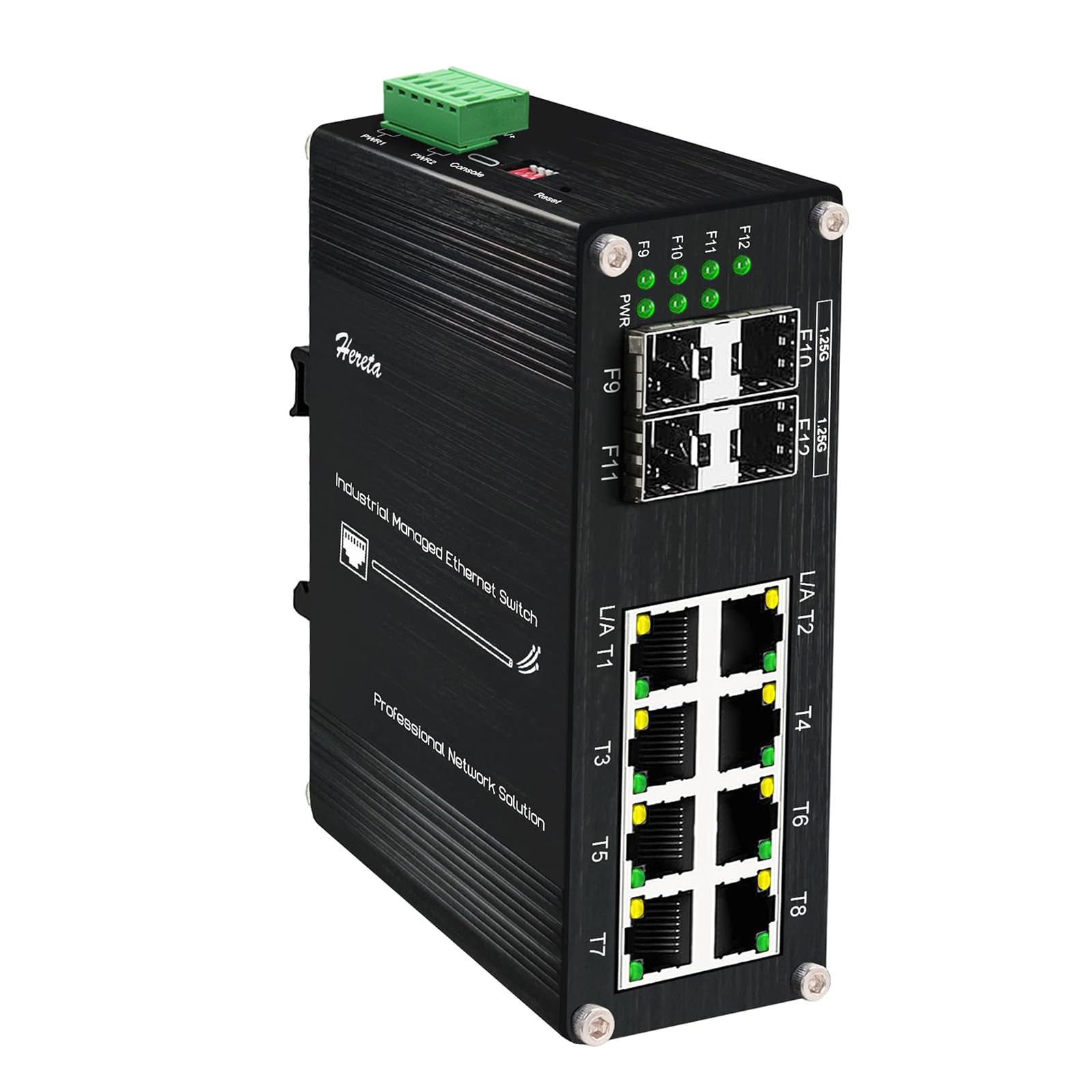

✓【Port Configuration】8 Gigabit RJ45 + 4 SFP Fiber Ports Non-PoE L2+ managed switch with 8×10/100/1000M copper ports and 4 gigabit SFP slots, compatible with single/multi-mode fiber. Exclusive USB-C debug port replaces RS232 cables for quick setup. 24Gbps bandwidth, 12M buffer, 8K MAC table and 9K jumbo frame supported.
✓【One-Click Anti-Ring & Standard Ethernet Protocols】Low Power Stable Forwarding 4-digit DIP switch enables one-touch ring protection to avoid network loops. Compliant with IEEE 802.3 series, 802.1d STP, 802.1p QoS and EEE energy-saving tech. Store-and-forward design ensures smooth HD video transmission.
✓【Dual Redundant 12~57VDC Power Supply】Nonstop Network Running 6-pin terminal block supports dual backup power input. Automatic power switchover when one source fails. Built-in overload & reverse polarity protection, meets IEC61000 surge/ESD standards; only 15W max full-load power consumption.
✓【IP40 Rugged Aluminum Industrial Housing for Extreme Temperatures】DIN-Rail Mount Ready Hardened dustproof IP40 aluminum enclosure resists shock and vibration, reliably operating at -40°C to 80°C (-40°F ~ 176°F) in outdoor roadside cabinets and factory control rooms. Pre-installed DIN-Rail bracket for easy cabinet mounting, optional RS485 serial port supports 1000m long-distance industrial equipment linkage, with over 200,000 hours MTBF for long-term continuous use.
✓【Complete L2+ Functions & Full Certifications】Multi-Scenario Use Supports complete L2+ advanced network protocols: STP/RSTP/MSTP/ERPSv2 ring redundancy, LACP link aggregation, IGMP Snooping, 4K 802.1Q & Q-in-Q double VLAN, L2-L4 ACL and port mirroring. Multiple management access: WEB, CLI, SNMP, LLDP, IPv4/IPv6 DHCP and Cloud/MQTT remote control, with relay fault alarm output. Certified CE, FCC, RoHS & ISO9001, ideal for highway traffic monitoring, smart city surveillance, factory automation and campus fiber backbone networks.
