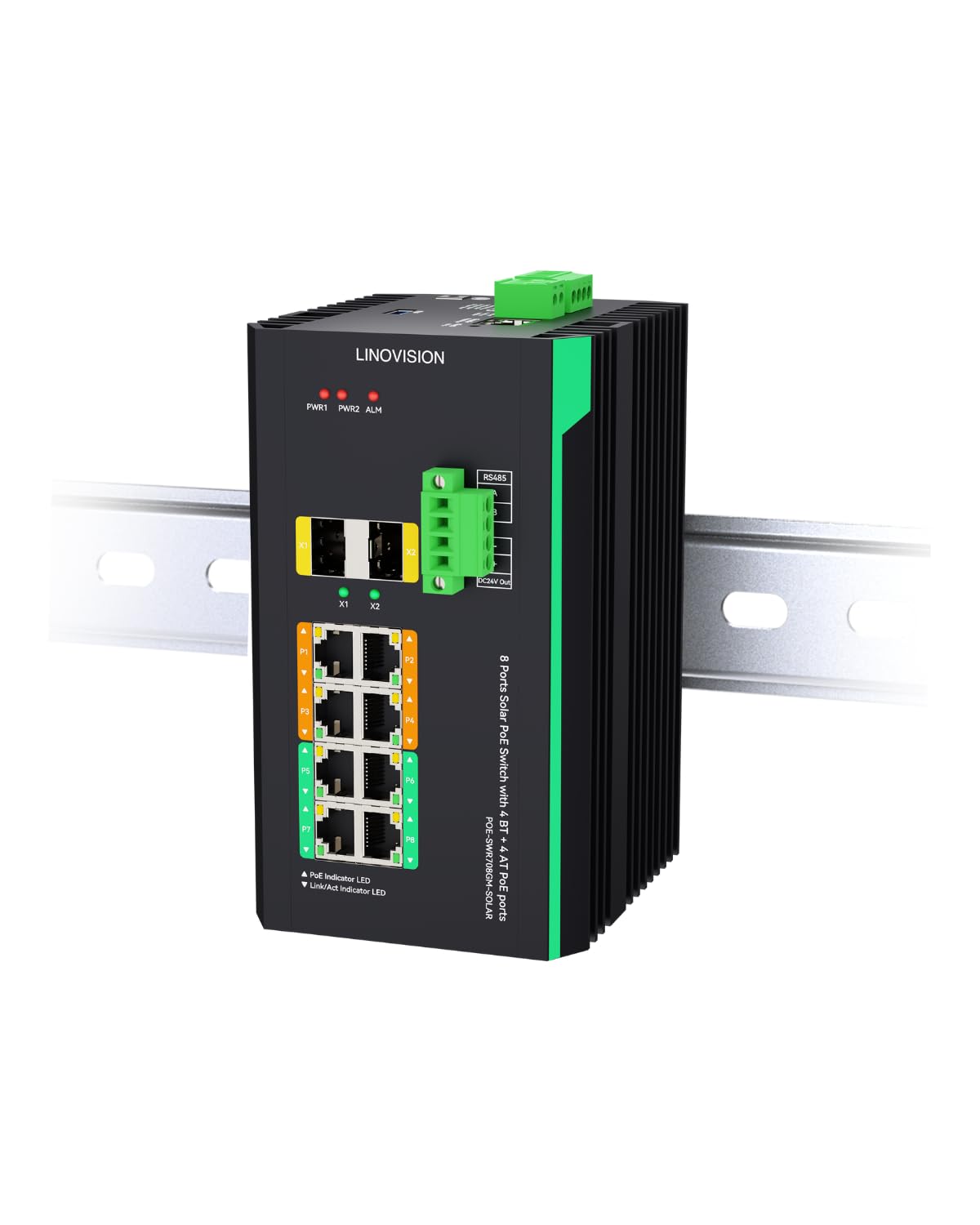

✓LAYER 2 MANAGED PoE SWITCH - Provides 8 * 10/100/1000Mbps Ethernet RJ-45 ports, 2 * 1G/2.5Gbps SFP uplink ports. Supports L2 management functions like VLAN, QoS, PoE Management, Link Aggregation and PoE port control. It can be managed via WEB, CLI or SNMP.
✓DC12~57V WIDE VOLTAGE INPUT - Supports 2 channels of DC12~57V redundant power inputs. It is designed for reliable PoE power output in solar power systems, vehicles or other applications that without AC power input.
✓RS485 SERIAL DATA INPUT - Monitor the solar system via RS485—track status, battery output, charging, and temperature—compatible with third-party controllers, no serial server needed, and supports IoT sensors like humidity, smoke, and light control.
✓24V DC OUTPUTS - Provides 24V DC, 0.25A power for Non-POE IP cameras, access reader terminals, IP speakers, Routers, etc.
✓Passive 54V/24V PoE Output - Each port can be individually switched via Web or CLI between Passive and standard PoE modes, with per-port power monitoring; ideal for wireless APs, wireless bridges, or other devices that accept 54V/24V Passive PoE—no extra PoE injector needed.
✓PoE Watchdog and P-PoE - Its PoE watchdog technology enables continuously monitoring PoE ports and automatically reboot PD device if it is freezing, and the Perpetual PoE ensure non-stop PoE supplying even if the switch is restarting. They are unique features for many IoT devices that rely on non-interruption operation.
✓90W BT PoE - Fully compliant with IEEE 802.3af/at standards for all ports. Ports 1-4 support 802.3bt 90W or Passive 54V (30W), Ports 5-8 support 802.3at 30W or Passive 24V (15W). Total PoE budget 240W @ 57V, or 120W @ 24V, or 60W @ 12V.
