Product Details

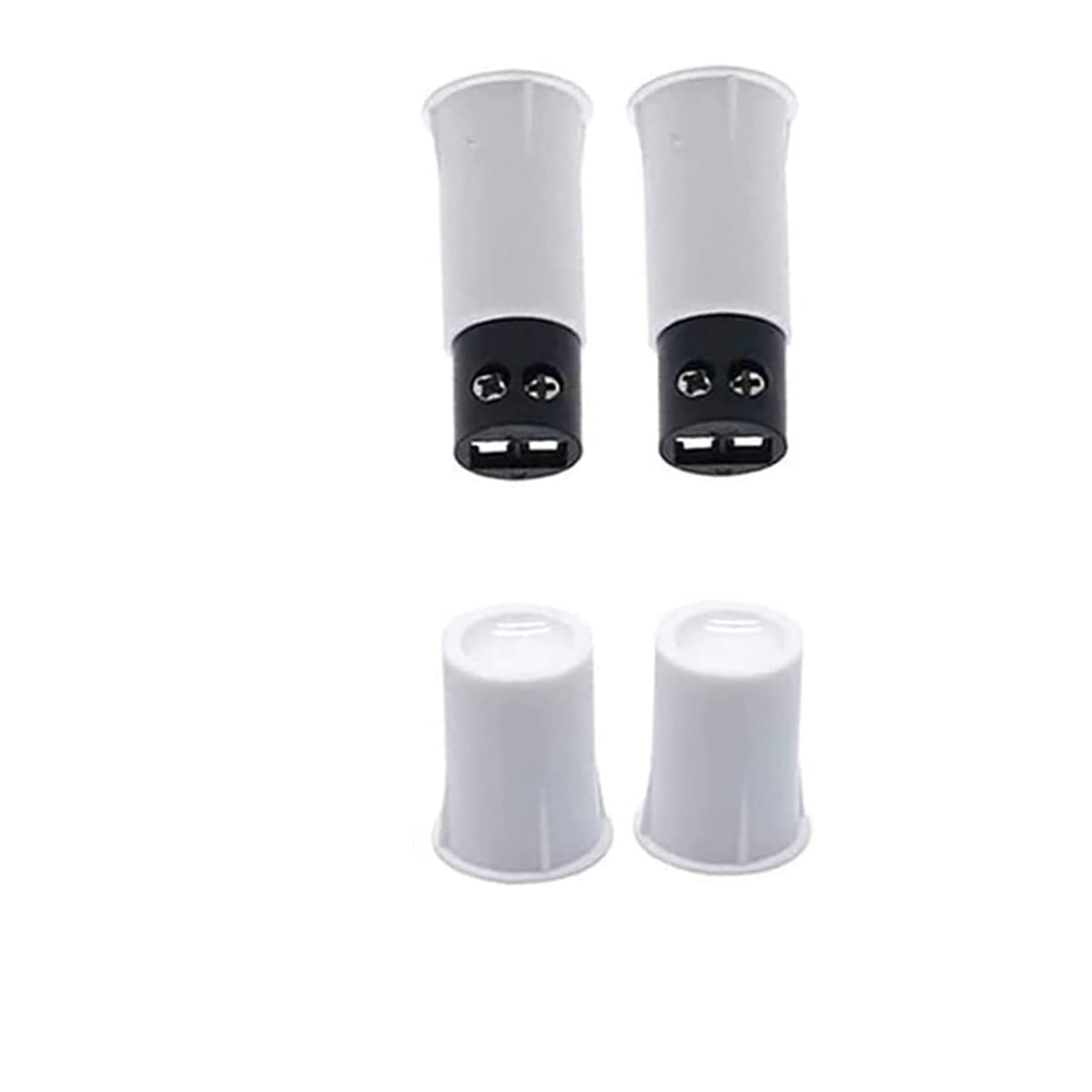

✓【Name】: MC-33C NC Magnetic Reed Switch.
✓【Specifications】: Material: fireproof ABS material, rated voltage: 100V; contact capacity: 500(mA) (maximum switching current), rated power: 10W (maximum switching power); contact type: NC, triggering range: 15-25mm . Overall Dimensions: 27 x 12 mm / 1.06" x 0.47" (H*D). White makes the home big and beautiful.
✓【Switch Type】: NO means normally open: when the magnets are separated, the circuit is turned on (the light is on); when the magnets are together, the circuit is not turned on (the light is off), NC means normally closed: when the magnets are together, the circuit is turned on ( The light is on); when the magnet is separated, the circuit is non-conductive (the light is off). door contact reed switch with two screw terminals for connecting alarm system wires, very easy to install.
✓【Application】: MC-33C NC reed switch is an electrical switch operated by an external magnetic field. Designed for use in alarm systems. Ideal for windows, doors in homes and factories. etc. Important: connect when near the magnet, disconnect when the magnet moves away. Wired magnetic door/window contacts can be added to wireless/wired alarm systems. (some wireless systems have a wired area)
✓【Package Included】: 2 sets x MC-33C Reed Switch. Here's our 90-day money-back risk-free purchase guarantee, ›See more product details
