Product Details

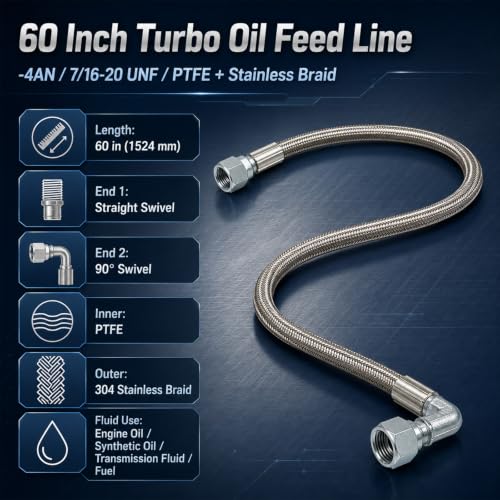

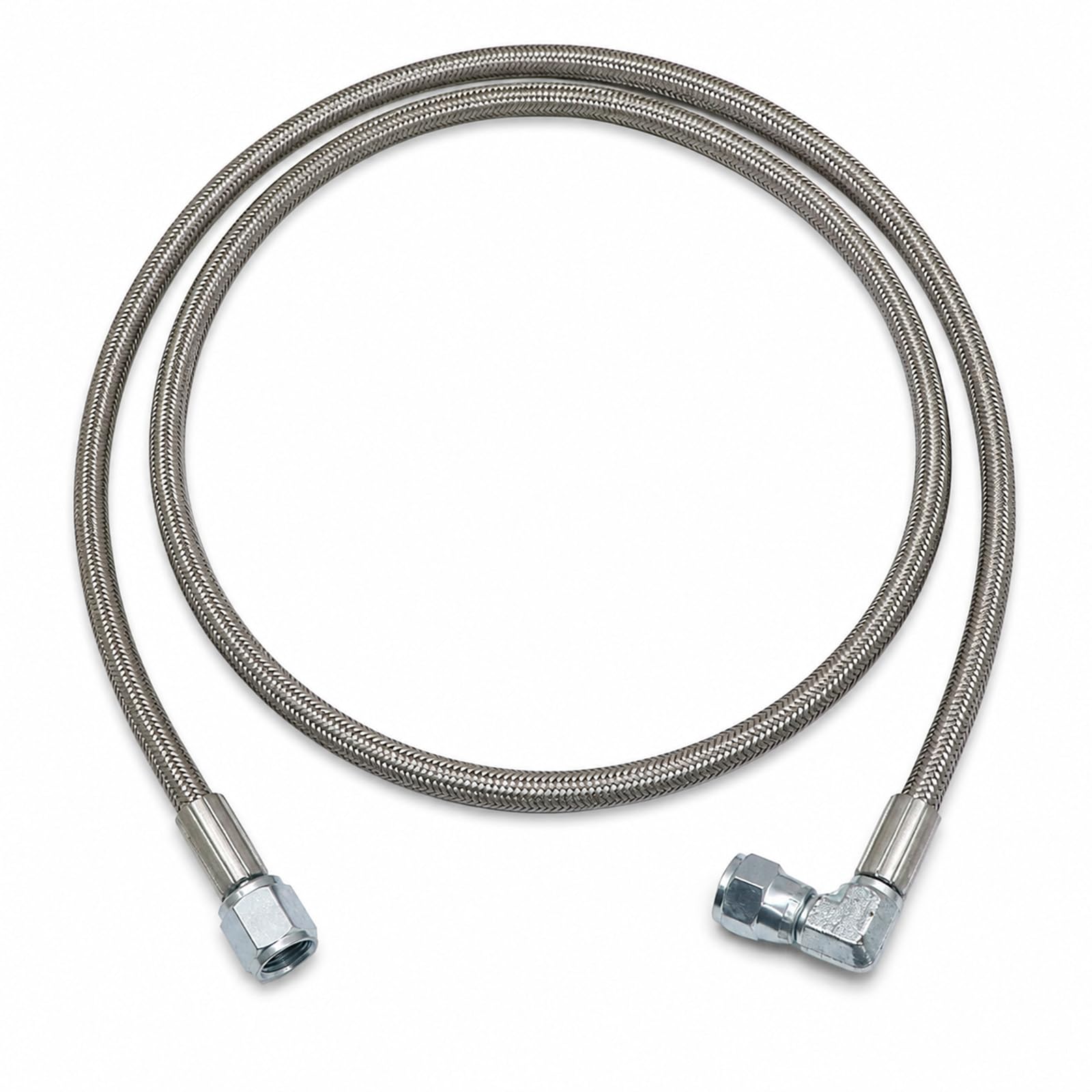

✓【Specifications】-4AN stainless steel braided PTFE (Teflon) oil feed line. Length: 60 inches (5 feet). Inner liner: PTFE. Overbraid: stainless steel woven mesh. Hose ends: One straight fitting + one 90-degree swivel fitting. Thread size: 7/16-20 UNF (standard -4AN). Working pressure rated for turbocharger oil feed and oil pressure gauge applications.
✓【Universal Turbo Fitment】Designed for use as a turbocharger oil feed supply line. Compatible with T3, T4, T04E, T60, T61, T70, T76, GT35, GT45, and similar frame turbochargers that accept a -4AN or 7/16-20 UNF oil inlet fitting. Also used for remote oil pressure gauge sensor lines, remote oil filter lines, and turbo timer oil feed applications.
✓【Inner Liner】The inner tube is made from PTFE, which is inert and handles petroleum-based engine oils without degradation. This liner will not contaminate your oil supply or shed particles into the turbo bearing.
✓【Construction】The outer layer is stainless steel woven braid that provides abrasion coverage and contains the PTFE liner under pressure. The braided construction allows the line to flex for routing around engine components while maintaining its shape once installed. Wipe clean with a shop towel — the stainless finish maintains its appearance in the engine bay.
✓【90-Degree Swivel End】One end features a 90-degree swivel fitting that rotates 360 degrees before final tightening. This allows you to orient the hose exit angle for clean routing without twisting the line. The straight end connects to the other attachment point. Both fittings are machined with standard. Includes both fittings pre-assembled on the hose — ready to install.
