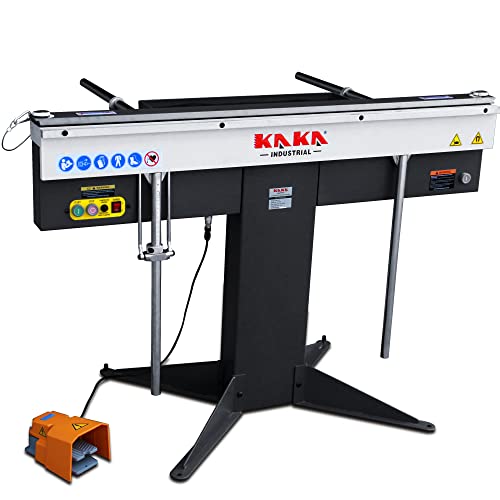

✓52 IN MAGNETIC SHEET METAL BRAKE, 16 GAUGE MILD STEEL: The EB-5216 has a 52 in bending length and a 16 gauge mild steel capacity for sheet metal panels, ducts, pans, trays, enclosures, covers, brackets, and shop fabrication parts.
✓6.5 TON ELECTROMAGNETIC CLAMPING: Electromagnetic clamping applies force along the beam to hold compatible sheet metal during bending, without the side-frame restrictions of many conventional brakes. Fully welded steel frame.

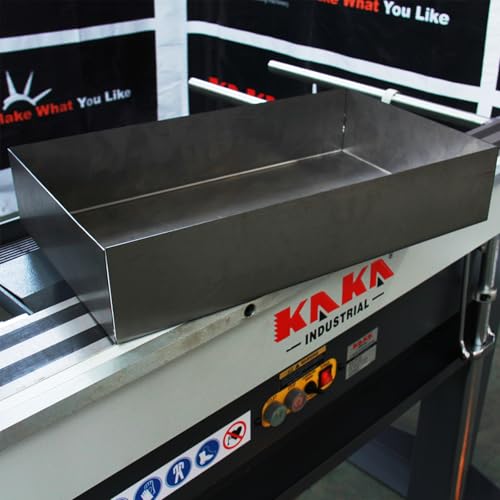

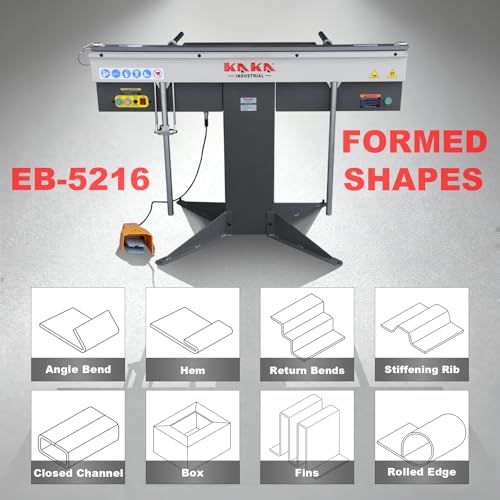

✓OPEN-ENDED DESIGN FOR DEEPER BOXES & ENCLOSED DUCTS: The open-ended design does not rely on conventional finger depths, so it helps form deeper boxes, pans, enclosed ducts, channels, return bends, and shaped parts when the clamp bar, material thickness, and bend length are within machine capacity.

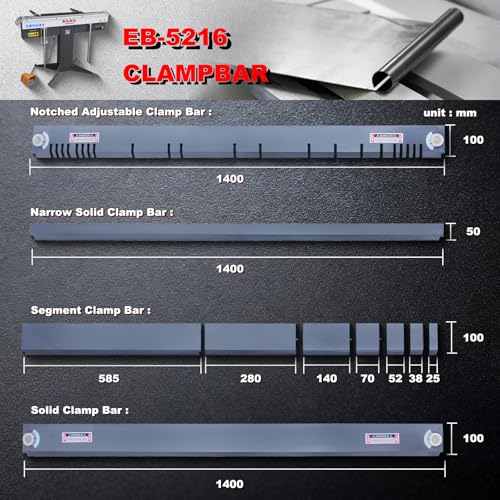

✓CLAMP BARS, SCALED ANGLE CONTROL & BACK GAUGE: Includes clamp bars for straight and segmented bending setups. Blade gap adjustment, scaled stroke angle control for repeat bends, product supports, and an adjustable back gauge help with repeat shop work.
✓FOOT PEDAL, 220V 60HZ SINGLE-PHASE, 30% DUTY CYCLE: The foot pedal clamps the material and keeps your hands clear of the machine. Runs on 220V-60Hz-1PH power with a 30% duty cycle and a thermal cut-out at 158 degrees F (70 degrees C). Check your circuit and do not exceed the duty cycle or material capacity.
