Product Details
✓FITMENT - For select Yamaha 2-stroke outboards 60-90HP on the 692-W0078 pump: 60, 70, 90, 90TLR, 70TLR, 60TLR, B90 and C90, plus C75, E75, P75, C80, C85 and CV85. 2-stroke only. Verify engine model and serial.
✓REPLACES - Replaces Yamaha 692-W0078-02-00, current number superseding 692-W0078-A0-00, 692-W0078-01-00 and 692-W0078-00-00, also covering 69D-W0078-00-00. Crosses Sierra 18-3371, Mallory 9-48616, GLM 12053. Not genuine Yamaha.

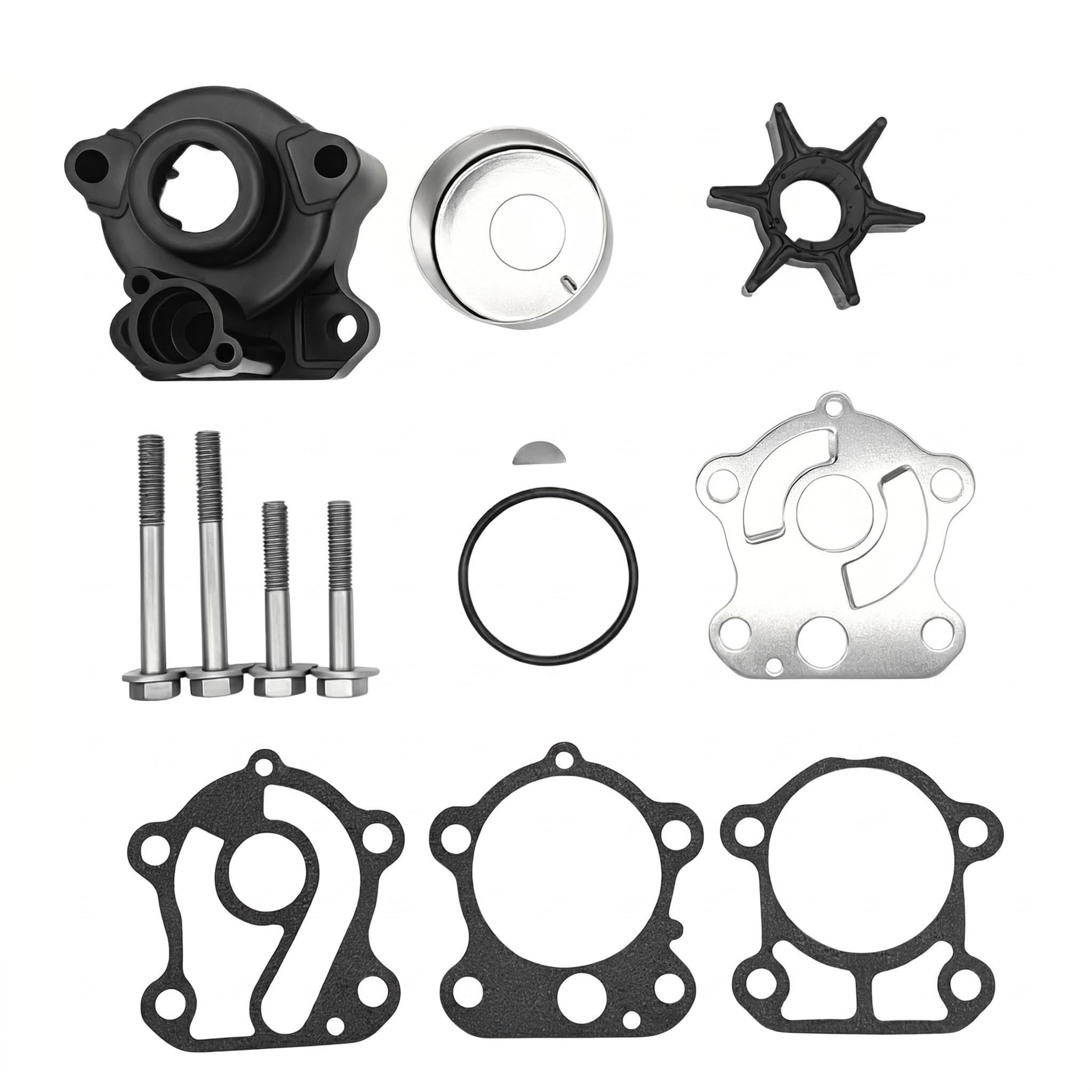

✓BUILD - One complete kit: 6-fin neoprene impeller with metal hub, cartridge insert, outer wear plate, pump housing, 3 gaskets, O-ring, woodruff key and 4 bolts with washers. Impeller about 67 mm OD and 48 mm deep. Gear lube not included.
✓FUNCTION - Draws cooling water up through the suction tube to the powerhead. Resolves overheating at idle, a weak or absent tell-tale stream, and low water pressure from curled or worn impeller vanes.
✓BEFORE ORDERING - 2-stroke 60-90HP only, not for 4-stroke F60, F70 or F90. Yamaha used more than one pump on this horsepower range, so match the old pump housing and stamp. Not the housing-less repair kit.
