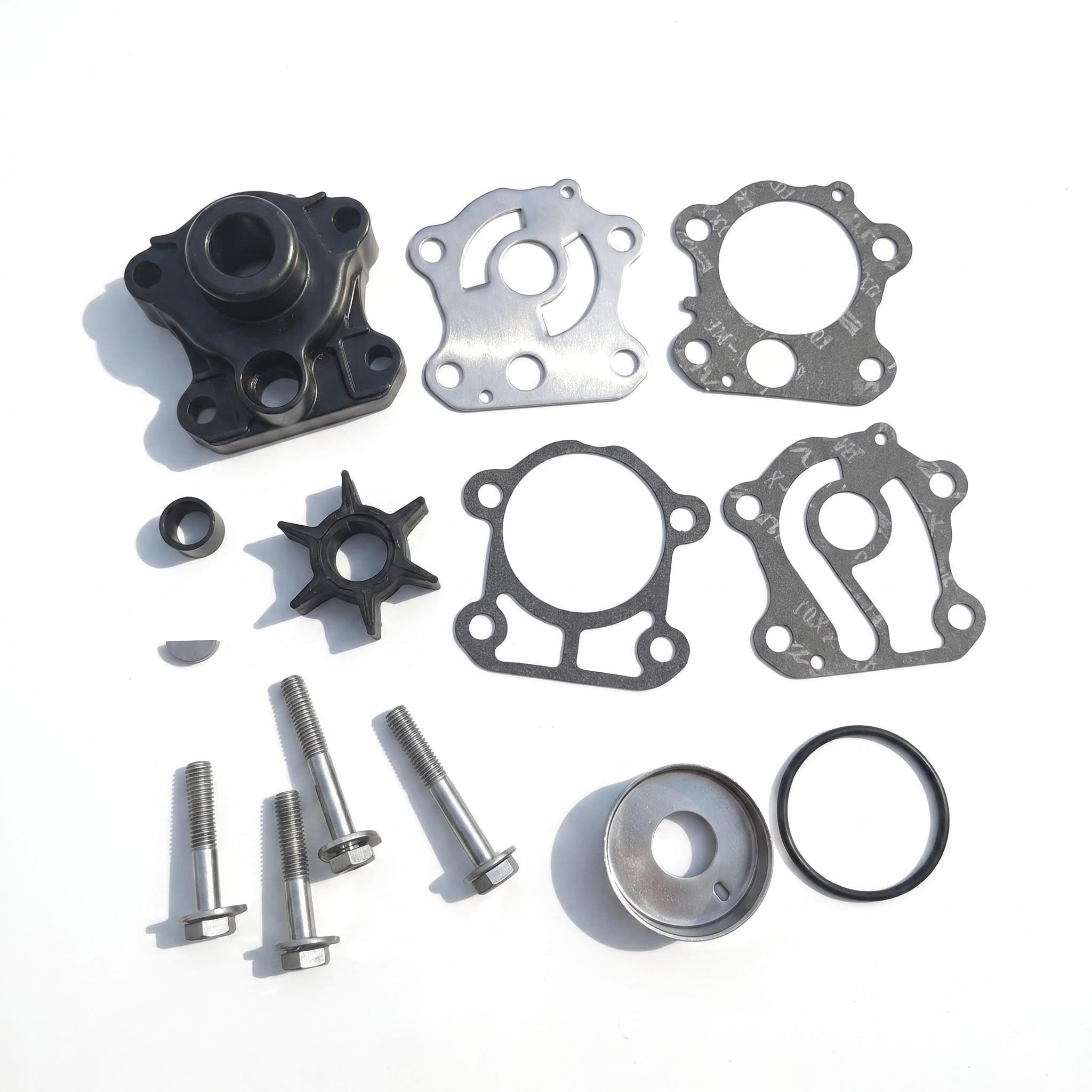

✓Complete Water Pump Kit WITH Housing (Not Housing-Less 6H3-W0078-00) Complete Water Pump Kit WITH Housing (Not Housing-Less 6H3-W0078-00) Direct aftermarket replacement for Yamaha lower-unit pump service kits. Replaces 6H3-W0078-00-00, 6H3-W0078-A0-00, 6H3-44311-00-00 and crosses Sierra 18-3461 (with housing) / 18-3466 / 18-3428-1. Kit includes impeller 6H3-44352-00, housing 6H3-44311-00, insert cup 663-44322-00, wear plate 6H3-44323-00, 3 gaskets, O-ring 93210-46044, woodruff key 90280-03M03, 2× M8 bolts 97095-08045/08055. Match old housing stamp before ordering—this is the WITH-HOUSING version; housing-less 6H3-W0078-00 alone will not include the nylon cup.
✓For Yamaha 2-Stroke 60-70HP & 4-Stroke High-Thrust 50-60HP Engineered for 2-stroke 60F / C60 / E60 / P60 / 70 / 70B / C70 and 4-stroke high-thrust T50 / FT50B/C/G/J / T60 / FT60B/D/G. (Exact model-code/year — 60F 1997-2003, 70B 1997-2003, FT50B 1997-2002, FT60G 2013-up
✓50/60/70HP Shaft Family Only — NOT 40HP C40/F40, NOT V6 90-150 Critical: 6H3-W0078-00 fits the 50/60/70HP 3-cyl 2-stroke & 4-stroke high-thrust lower unit with the 6H3-series driveshaft diameter. It does NOT fit 40HP C40/F40 (uses 6E5/63V pump family), nor 75-90HP (6R5/63Y), nor V6 115-150HP. Verify your engine decal reads 60F / 70B / FT50 / FT60 before ordering.
✓Fixes Overheat, No Tell-Tale Stream & Milkshake Gear Lube Resolves weak tell-tale stream, sudden overheat alarm, melted impeller chunks in the housing, and water seeping past the pump seal into gearcase (milky lube). New neoprene impeller, SS316 wear plate/cup, and fresh gaskets restore 4-6 GPM cooling flow. Grease the shaft lightly and clock vanes clockwise on install.
✓Lower-Unit Pull, 25-Minute Service Drop lower unit (4× 10mm mid-section bolts + trim tab), unstack old housing/plate/gaskets, seat woodruff key, drop impeller on shaft (vanes bend clockwise), stack new gaskets per diagram, torque housing bolts to 8 ft-lb in cross pattern, rehang lower unit, refill gear lube. Run on flushing muffs 3 min to confirm tell-tale before launch.
