Product Details
✓FITMENT - For select Yamaha V4 and V6 outboards in the 115-300HP range on the 61A-W0078 pump: F115, F150, F175, F200, F225, F250 and F300 four-stroke models plus 2-stroke Z, VZ, SX, VX, HPDI and OX66 models. Match the stamped kit number.
✓REPLACES - Replaces Yamaha 61A-W0078-A4-00, the current number superseding 61A-W0078-A3-00 and 61A-W0078-A2-00, also covering 64L-W0078-00-00 and 65L-W0078-A1-00. Crosses Sierra 18-3396-1. Not genuine Yamaha.

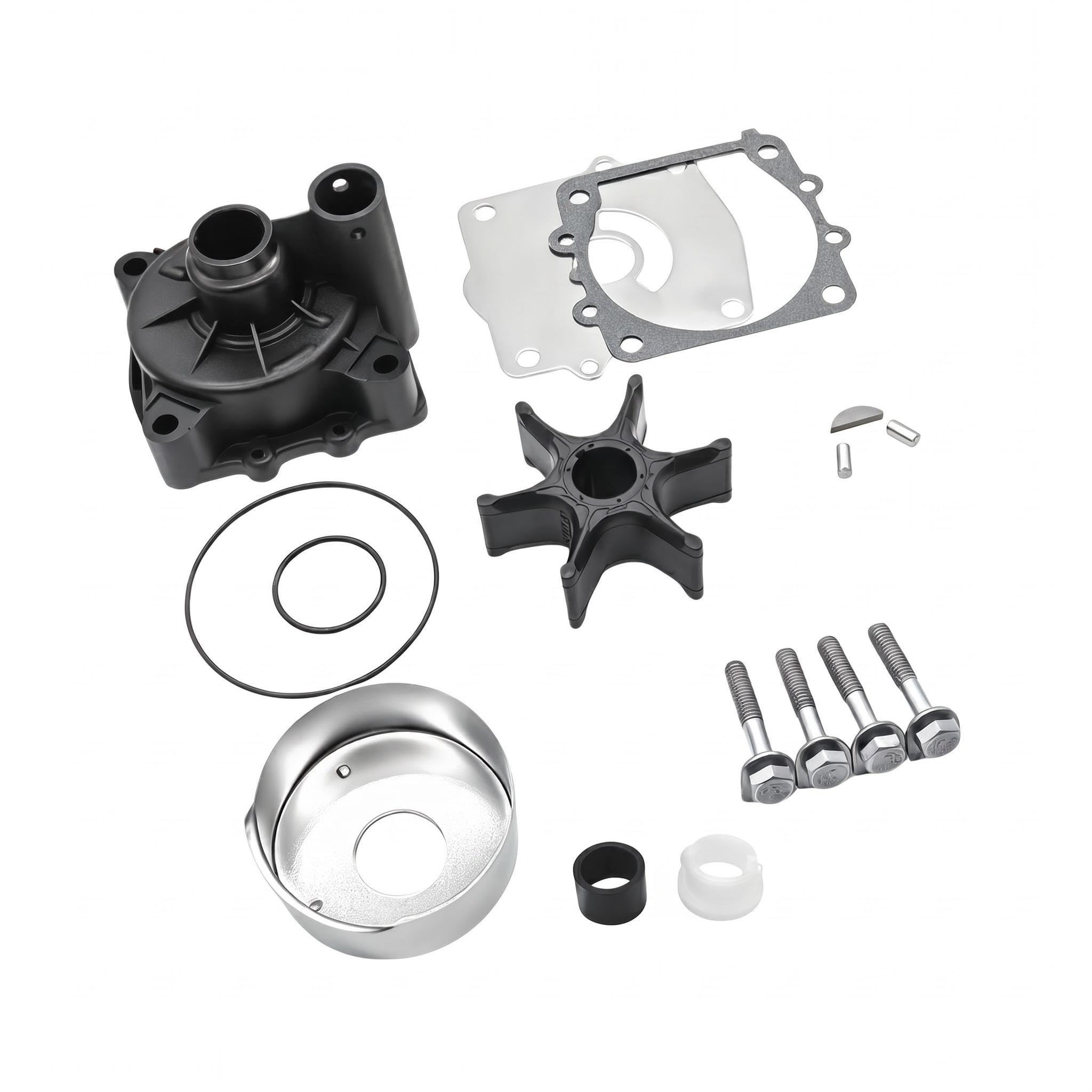

✓BUILD - One complete kit: neoprene impeller, nylon pump housing, wear plate, insert cup, gasket, 2 O-rings, woodruff key, 2 dowel pins and 4 bolts with washers. Impeller about 88.8 mm OD. Drive shaft seal and gear lube are not included.
✓FUNCTION - The impeller lifts raw water through the lower unit to the powerhead. Replace it for a weak or absent tell-tale stream, rising head temperature, an overheating alarm, and vanes that are shed, cracked, glazed or set from dry storage.
✓BEFORE ORDERING - This kit includes the housing, not the Sierra 18-3395 repair kit without it. Yamaha used more than one pump across this horsepower range, so match the stamped kit number and compare the old housing style.
